Pay-Off and Take-Up Devices

Pay-Off Devices for Low Carbon Wire (4)

Photo Model Type
PLW-4 PLW-4 Hydraulic vertical

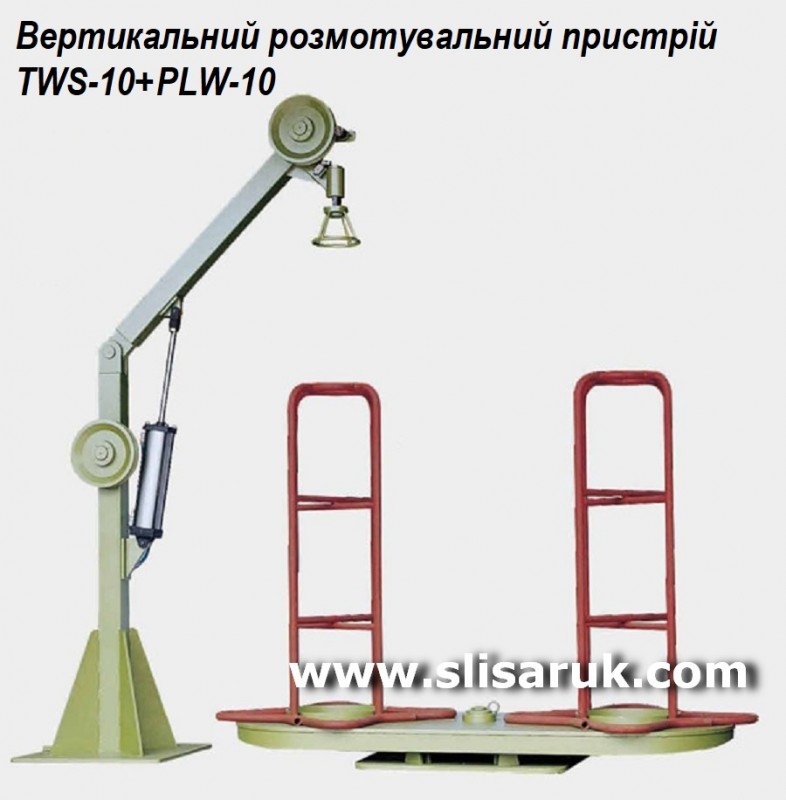

TWS-10 + PLW-10 TWS-10 + PLW-10 Hydraulic vertical + turn table

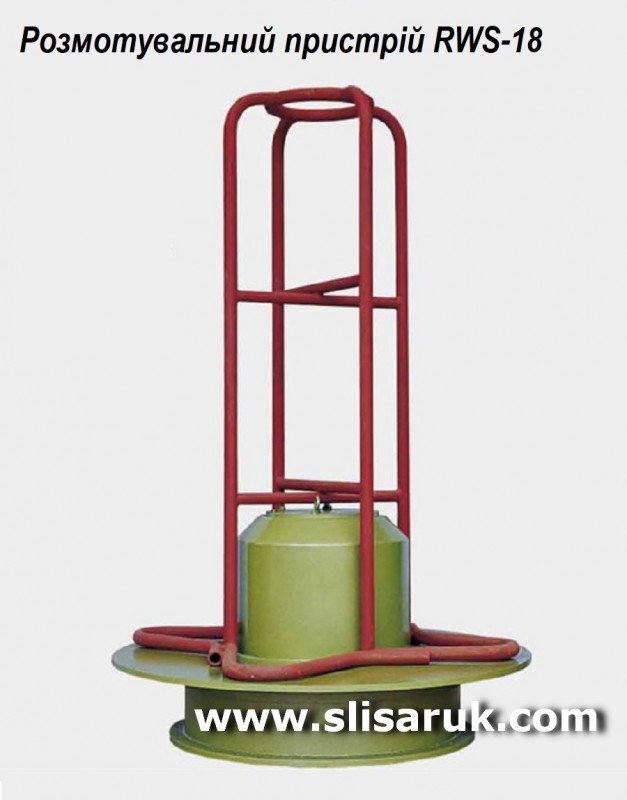

RWS-18 RWS-18 Rotating vertical

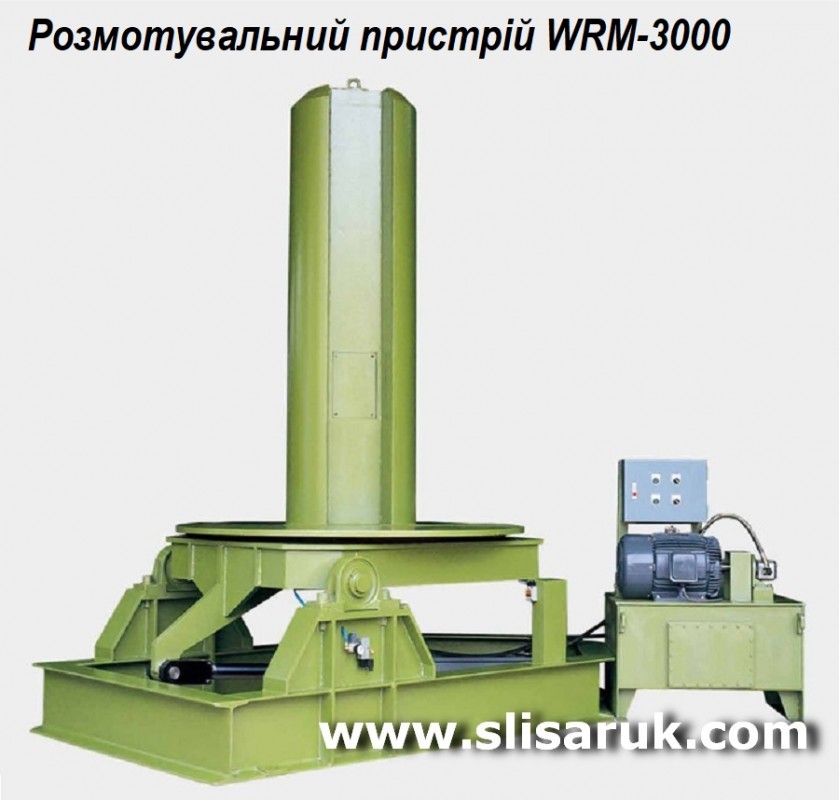

WRM-3000 WRM-3000 90° tilted

Multi-Purpose Pay-Off Devices (5)

Photo Model Type
SFR-7 SFR-7 Horizontal single flipper

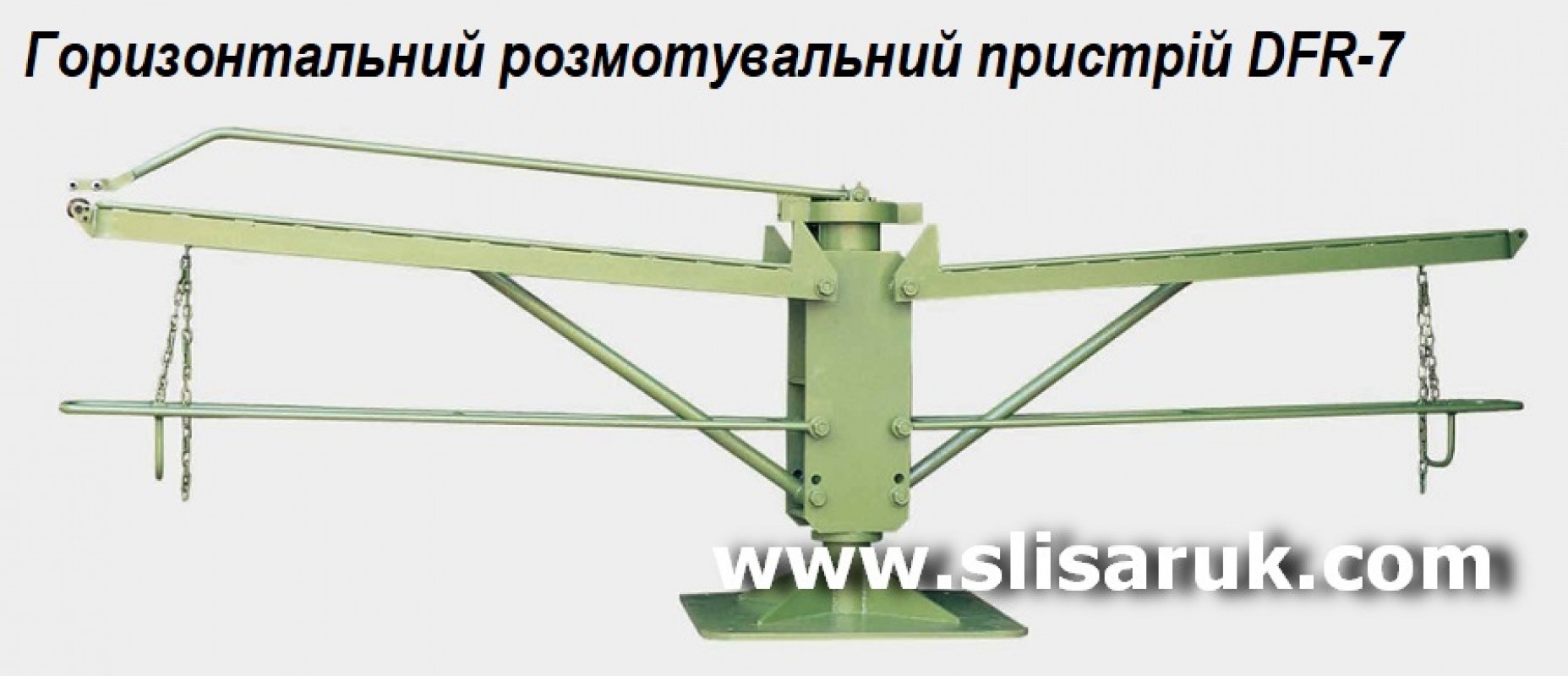

DFR-7 DFR-7 Horizontal double flipper

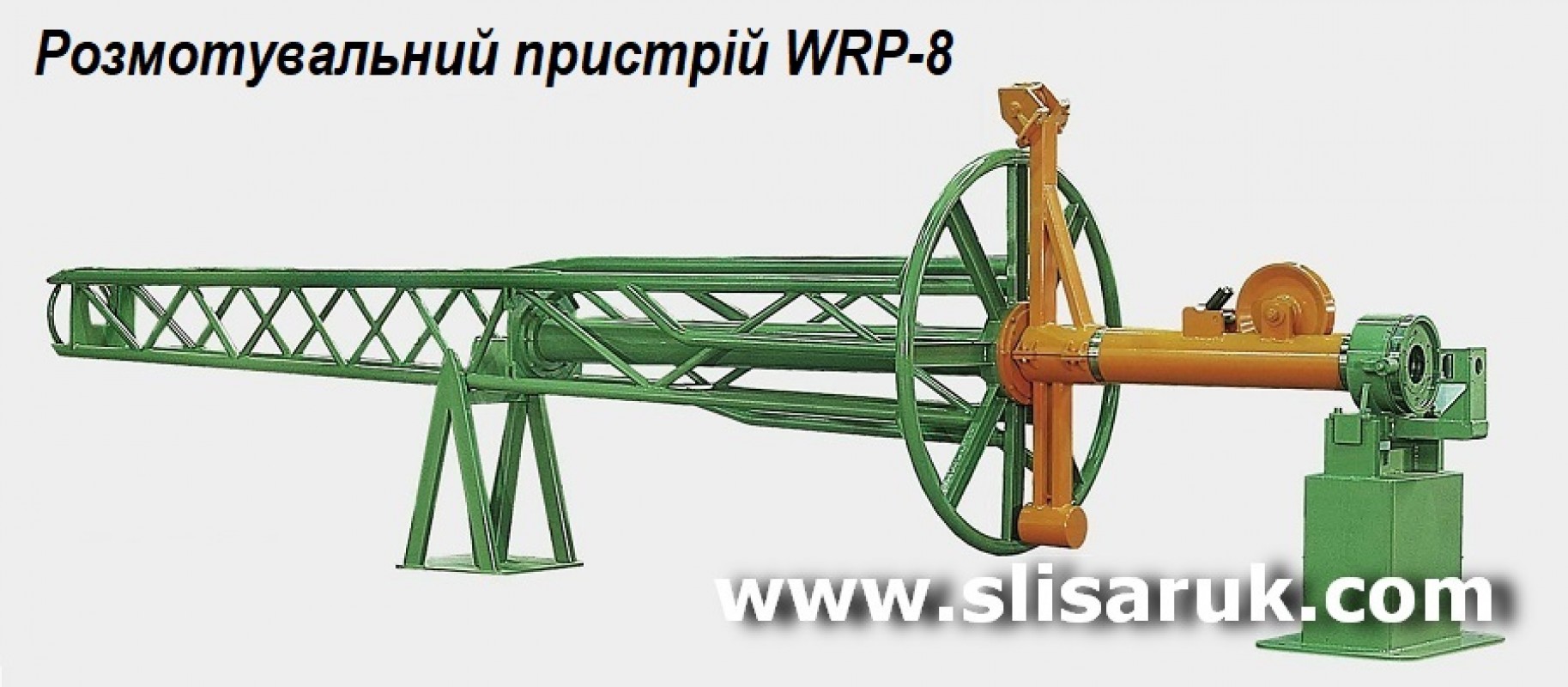

WRP-8 WRP-8 Horizontal
ESPC-1000 ESPC-1000 Spooler for 1000kg
ESPC-2000 ESPC-2000 Spooler for 2000kg

Non-Stop Coilers (3)

Photo Model Dia. of Low Carbon Material, mm Dia. of High Carbon Material, mm
SNSC-400 SNSC-400 1.0 ~ 3.2 0.9 ~ 3.0

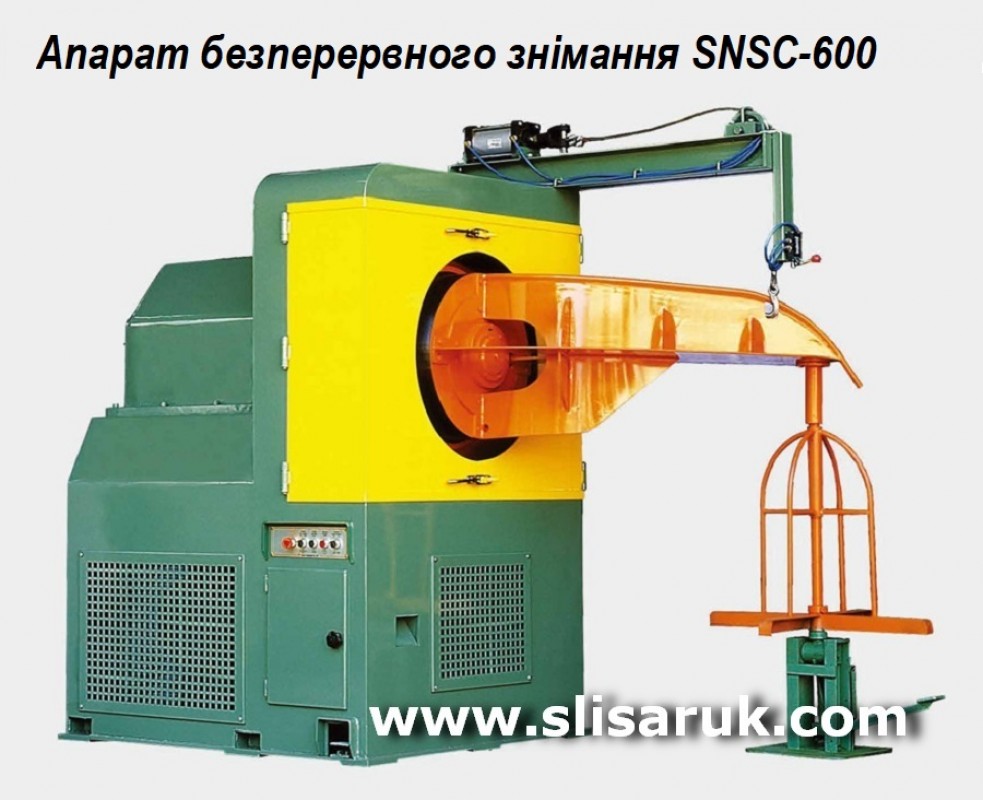

SNSC-600 SNSC-600 1.6 ~ 4.5 1.6 ~ 4.2
SNSC-760 SNSC-760 3.5 ~ 5.5 2.7 ~ 4.5

Non-Stop Coilers with Drawing Die (3)

Photo Model Dia. of Low Carbon Material, mm Dia. of High Carbon Material, mm

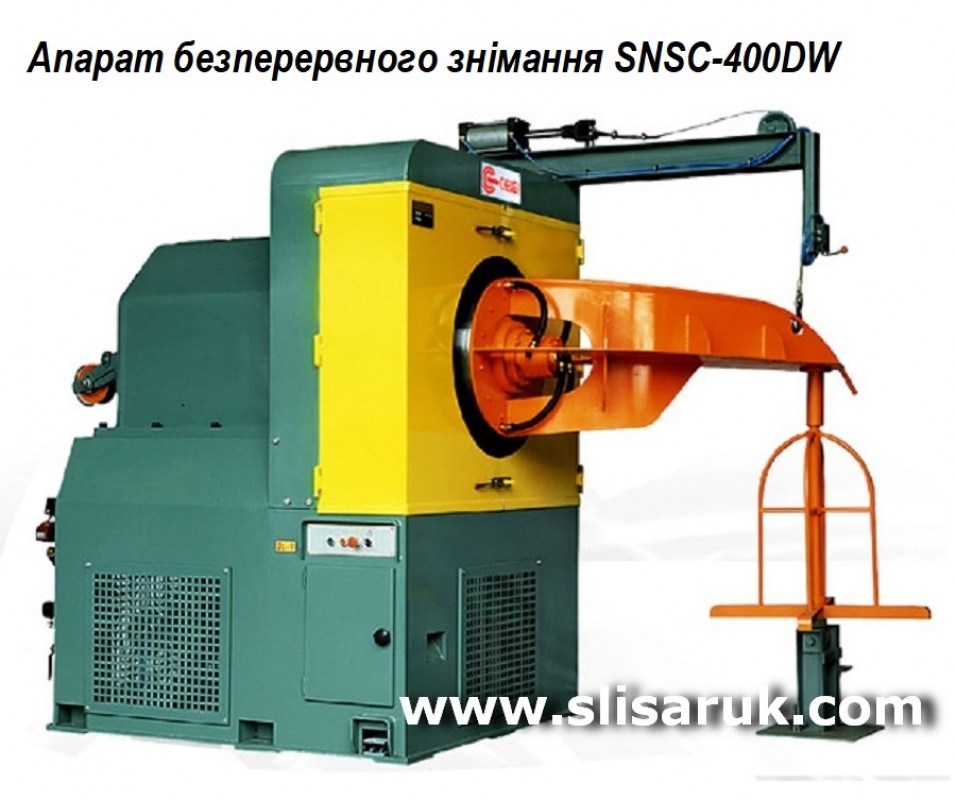

SNSC-400DW SNSC-400DW 0.9 ~ 3.2 0.8 ~ 3.0

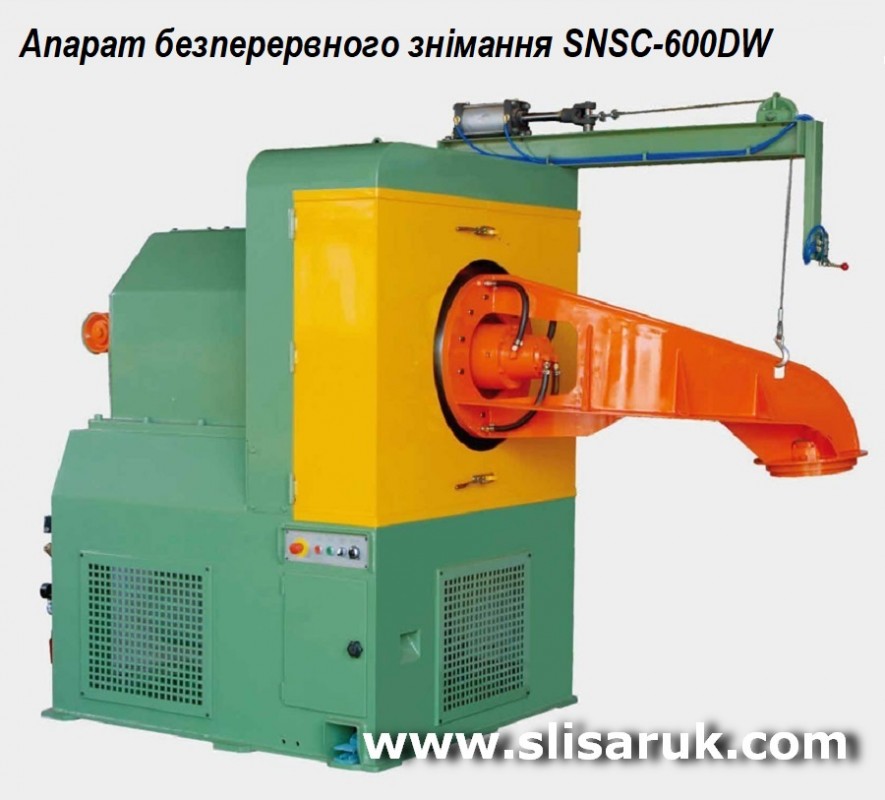

SNSC-600DW SNSC-600DW 1.6 ~ 4.2 1.6 ~ 4.0
SNSC-760DW SNSC-760DW 3.0 ~ 5.0 2.5 ~ 4.5

Pattern Layer (Rosette) (2)

Photo Model

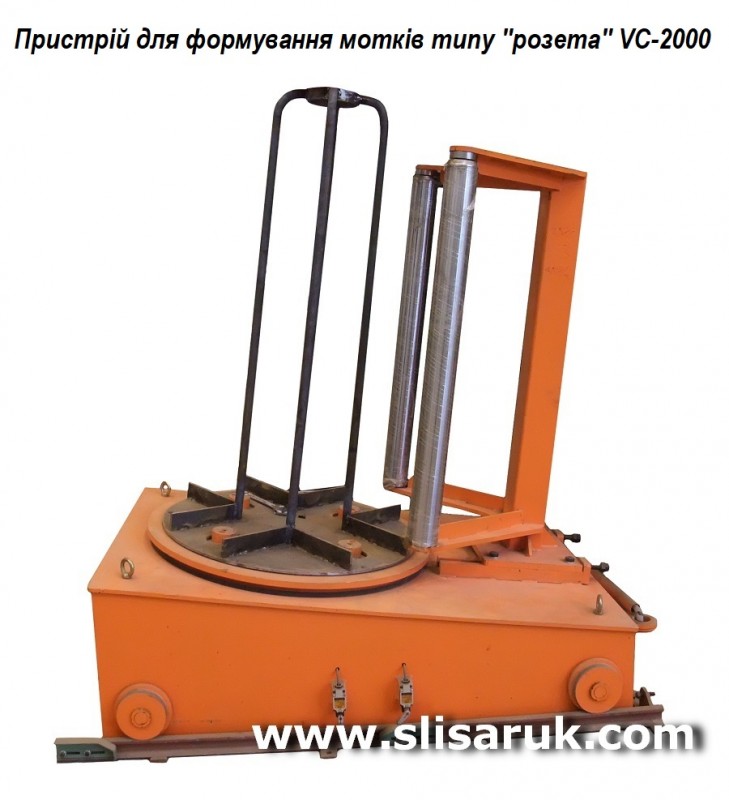

VC-2000 VC-2000

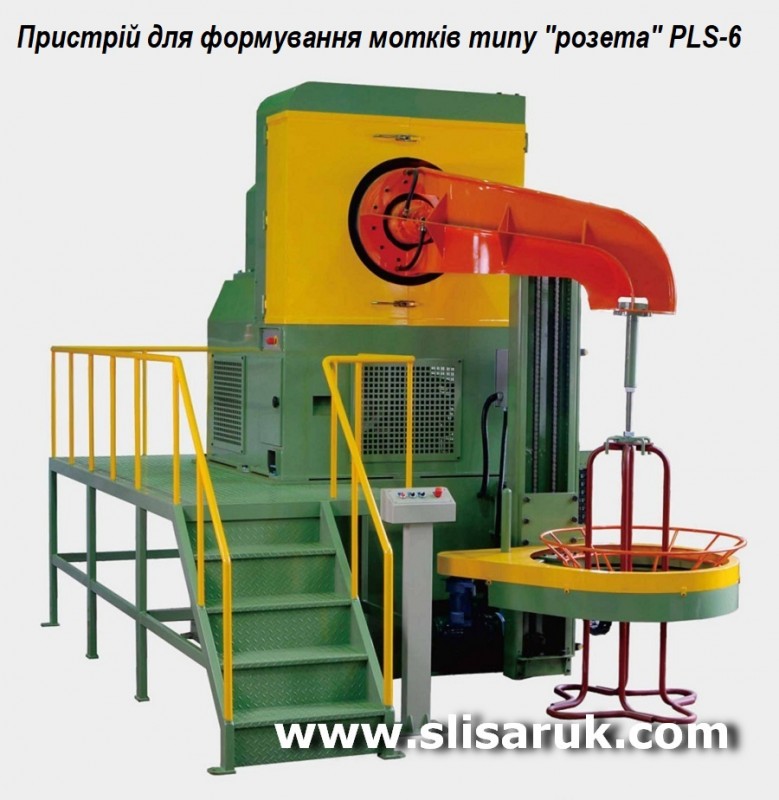

PLS-6 PLS-6

Spoolers (4)

Photo Model Type

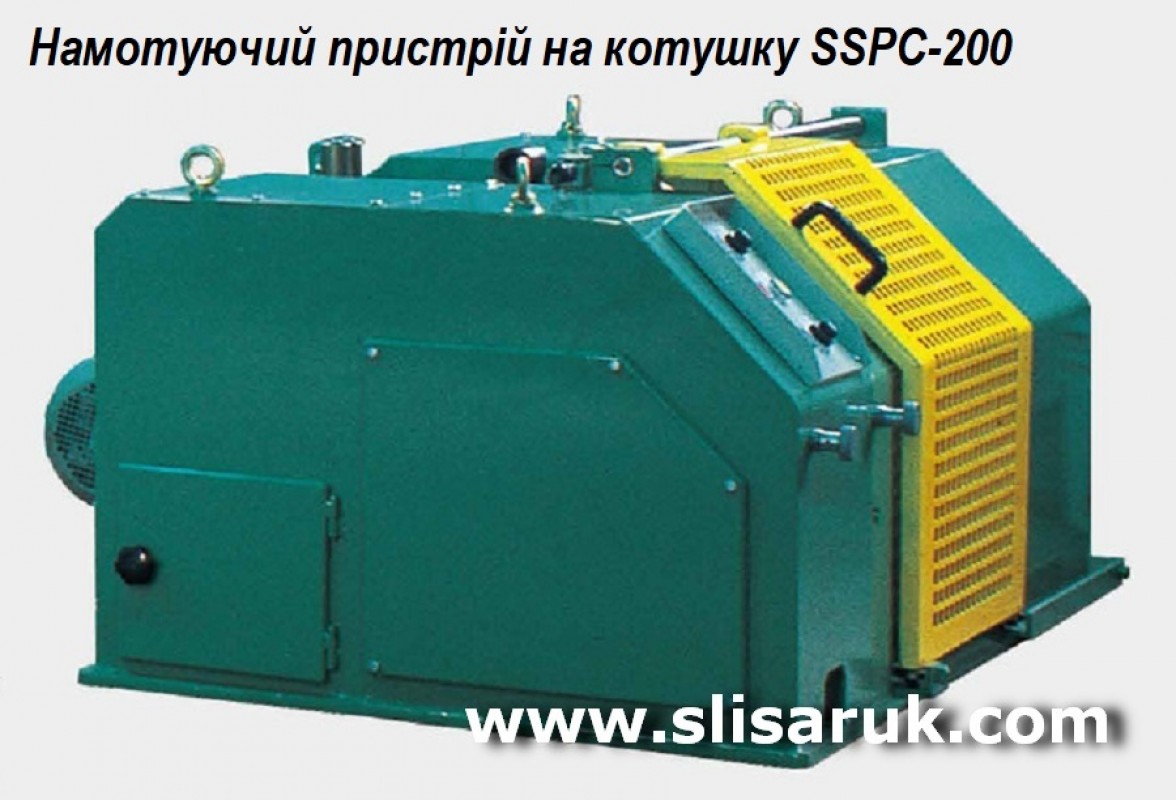

SSPC-200 SSPC-200 Loading weight up to 200kg

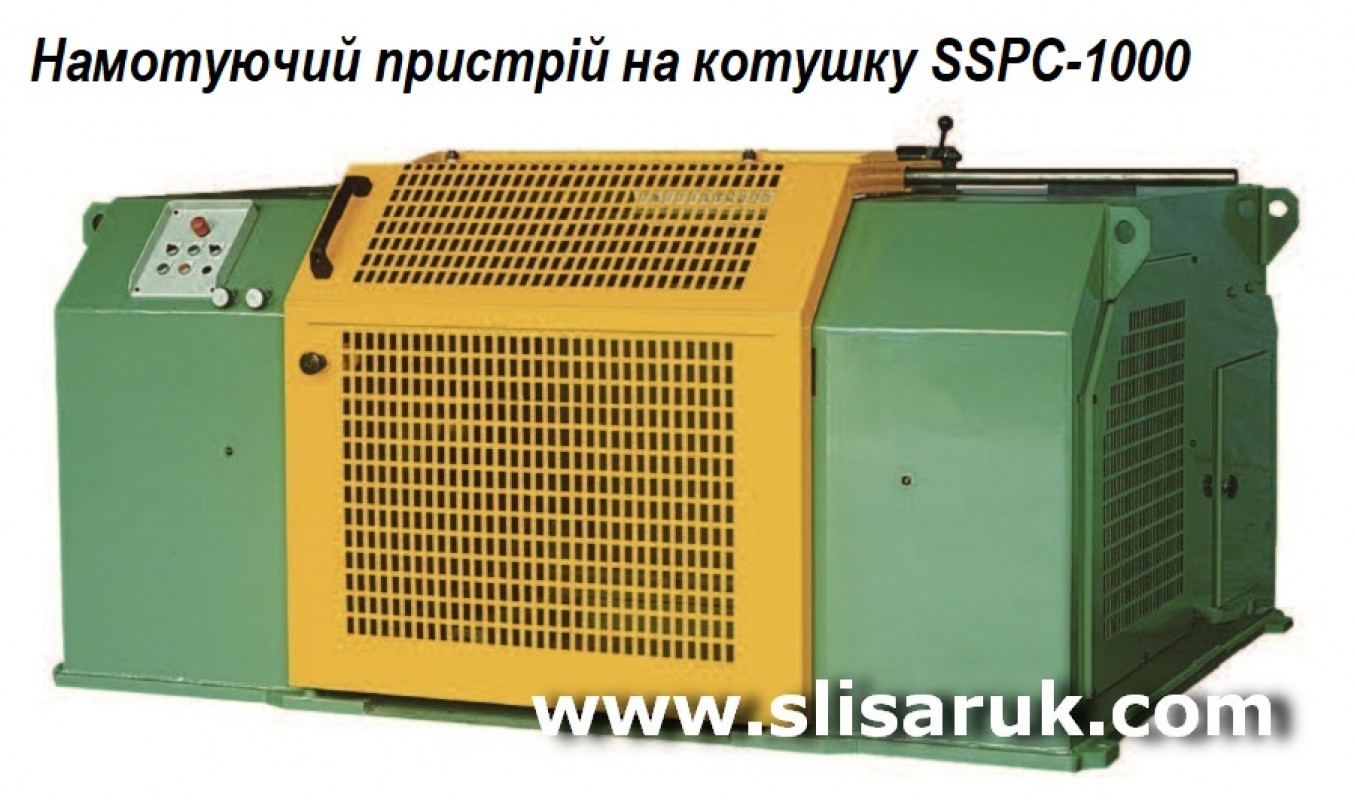

SSPC-1000 SSPC-1000 Loading weight up to 1000kg

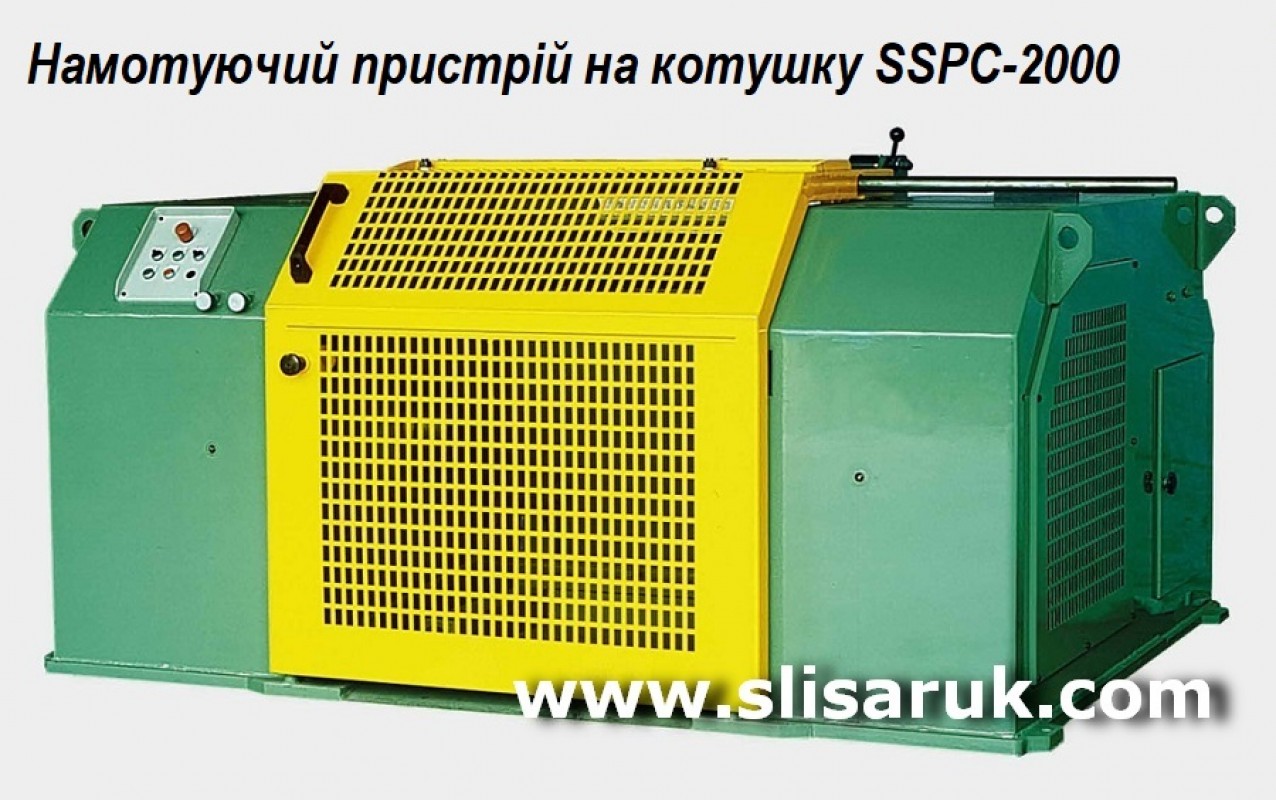

SSPC-2000 SSPC-2000 Loading weight up to 2000kg
SSPC-3000 SSPC-3000 Loading weight up to 3000kg

Skin-Pass Coilers (2)

Photo Model Drums Diameter, mm Inlet Material Dia., mm Outlet Material Dia., mm
SNSC-400S SNSC-400S 700 3.0 ~ 5.5 2.9 ~ 5.3

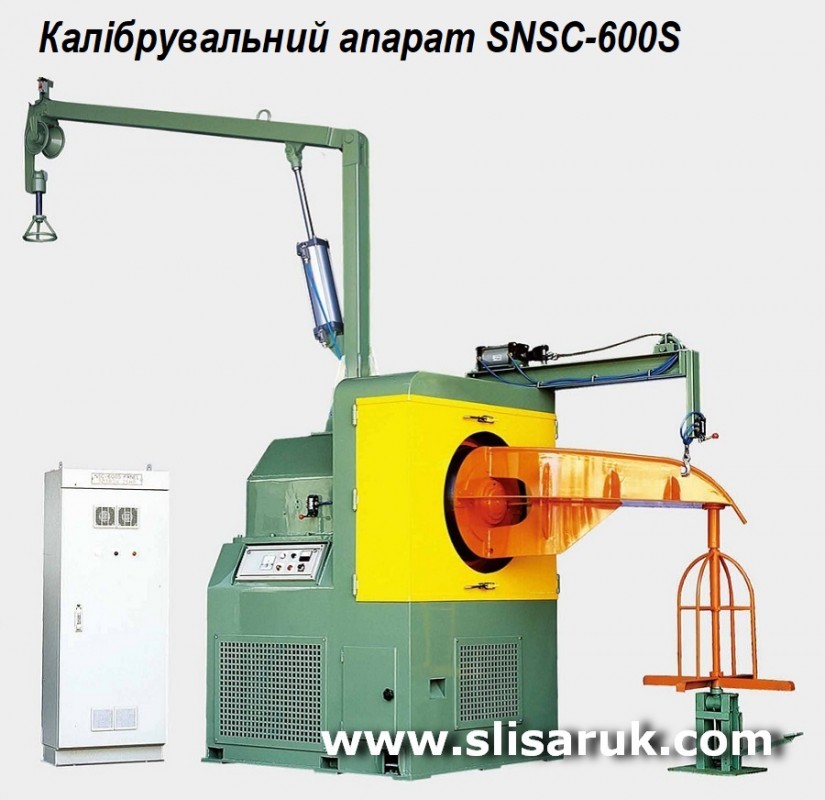

SNSC-600S SNSC-600S 600 2.1 ~ 4.5 2.0 ~ 4.3
